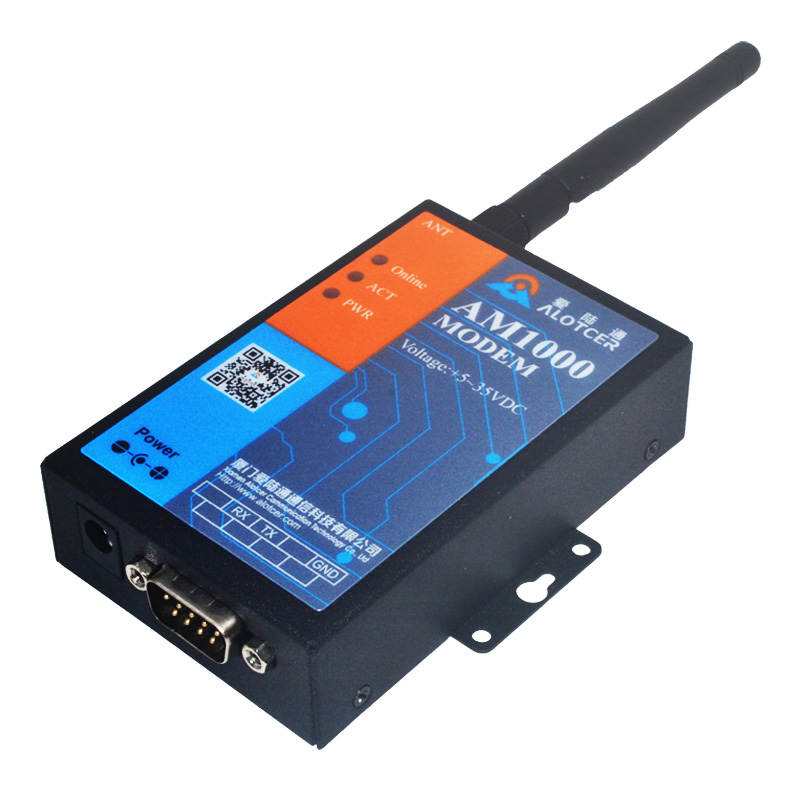

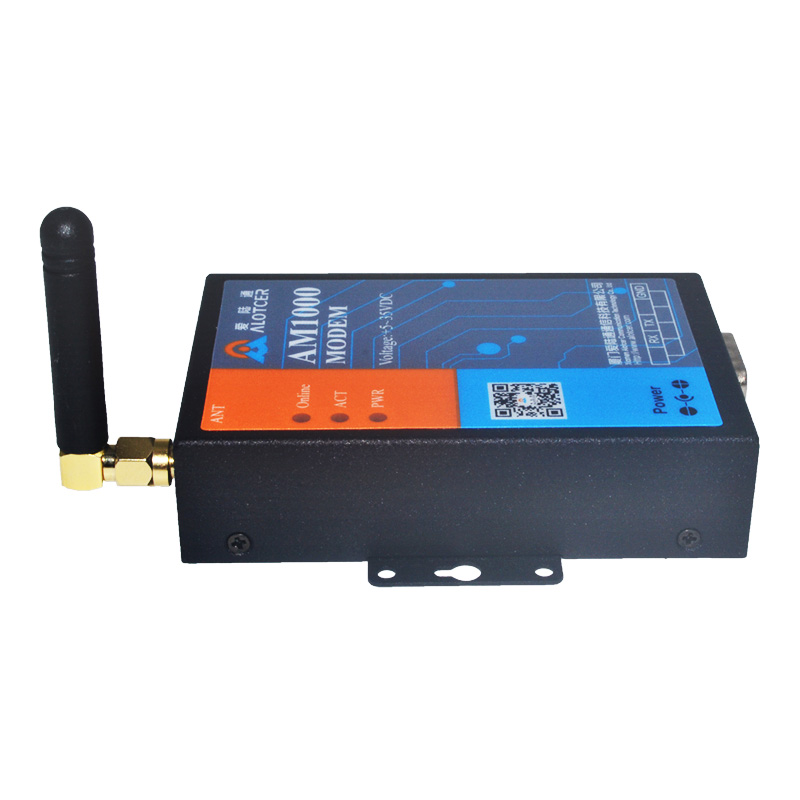

AM1000 Industrial SMS Modem

🔸SMS Modem 🔸Ultra-low Power
🔸Point to Point CSD Data Transmission 🔸GSM/GPRS/3G/4G/5G

👉 Support Standard AT Command
👉 SMS, dial-up Internet access, CSD function
👉 Industrial grade design, excellent quality
👉 Ultra-low power, DC 5-35V. Suitable for industrial application
👉 Normal operating temperature -35℃~75℃



Support SMS, dial-up Internet access, CSD function



SMS group send and receive, support APN/VPDN dial-up Internet access point to point CSD data transmission.





Industrial grade design, excellent quality



Electronic components, Core Modules, structural design, operating system, ect. Full compliance with industry-standard, and the products are more refined and more excellence.





Ultra-low power, Suitable for multi occasions



High-performance low-power system, support multiple operating modes.Maximize the reduction of power consumption and improve power efficiency.





Normal operating temperature -35℃~75℃



The terminal can work properly at -35℃~75℃,suitable for the harsh environment applications.





Power range DC 5~35V, stable and reliable



Work normally in the harsh power supply conditions.



Items Contents
Industrial Design High-powered industrial cellular module
Housing: iron, providing IP30 protection.
Power range: DC 5~60V
High Reliability RS232 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over voltage protection
Antenna port: lightning protection(optional)

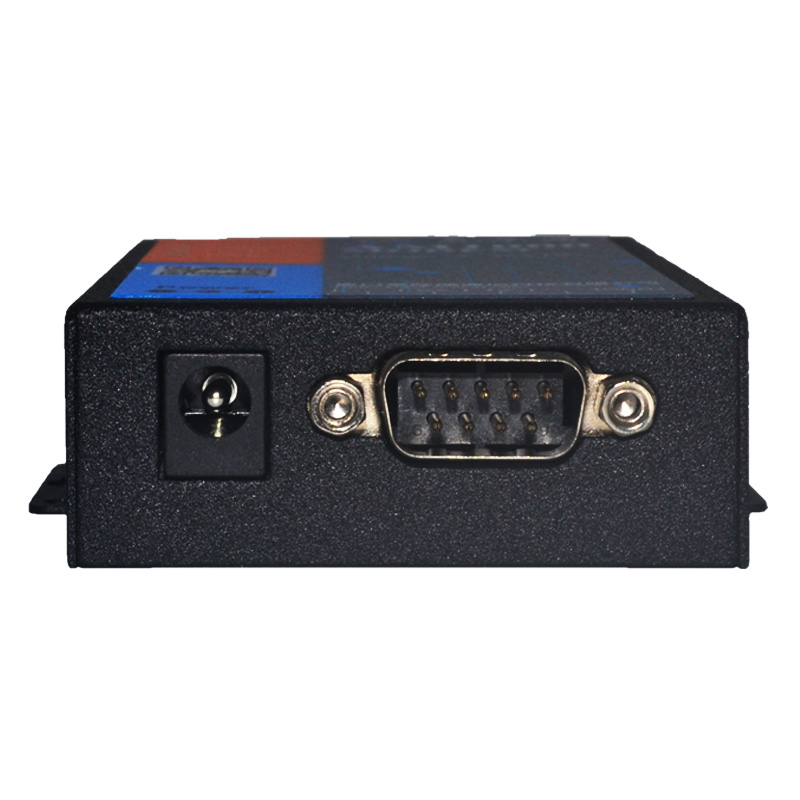

Standard and Convenience Support standard RS232 port that can connect to serial devices directly
Provide dial-up software that can make it always online
Provide SMS tool software
Support standard AT command
High-performance and Security Support SMS, dial-up and CSD function
Support APN/VPDN
Interface Serial 1 RS232 port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space, mark
Baud rate: 2400~115200 bps

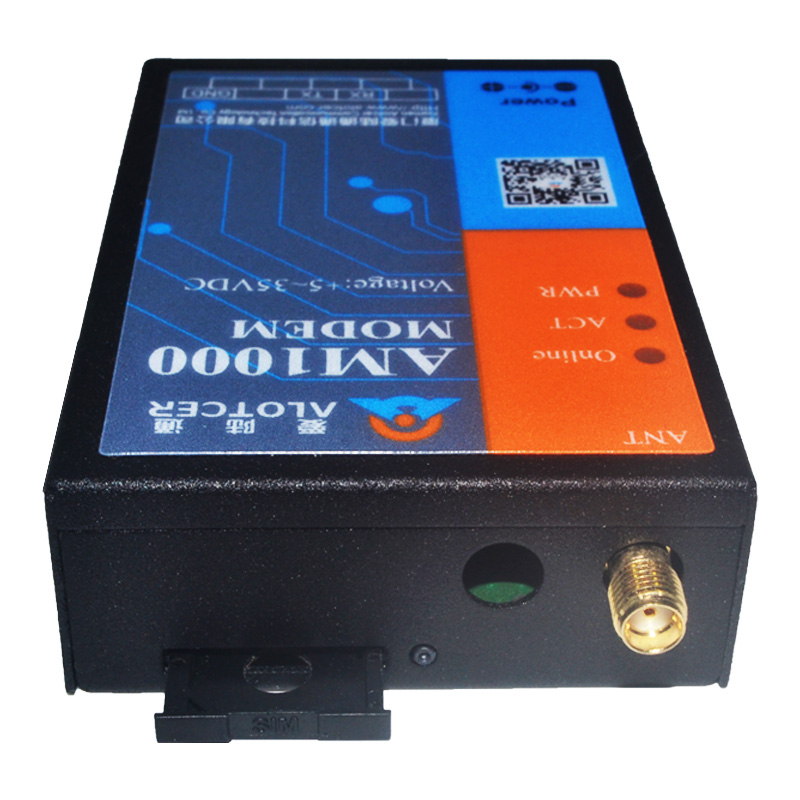

Antenna Standard SMA female interface, 50 ohm, lighting protection (optional)
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and over voltage protection
Indicator “PWR”, “ACT”, “Online”
Network Wireless Network GSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE: Band 38/39/40/41
FDD-LTE: Band 1/3/5
PPP Protocol Support PPP Protocol
PPP Heartbeat Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link.
Network Authentication Support CHAP/PAP Authentication
TCP Heartbeat Monitor the server connection
Power supply Standard Power DC 12V/1.5A
Power range DC 5~35V
Consumption <150mA (@12VDC)
Physical Dimensions 91x59x23mm
Weight 165g
Environmental Limits Operating Temperature -35~+75ºC (-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)
