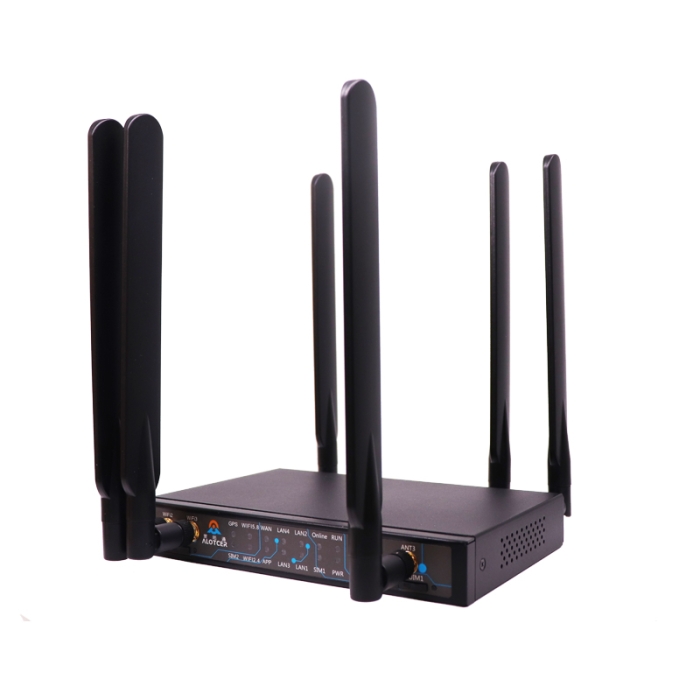

AR7091 Industrial IoT Gateway

🔸5G 🔸4G 🔸5 LAN 🔸ModBus RTU/TCP 🔸VPN Channel

👉 Gigabit Ethernet port, Dual-band WIFI, Optional dual-mode 5G
👉 Python & SDK (Python 2.7/C) for secondary development
👉 VPN, PPTP, L2TP, OPENVPN, IPSEC, GRE, GRETAP
👉 OPCUA protocol and MODBUS protocol conversion
👉 Supports Microsoft AZURE, Amazon AWS

Get Sample Now!
Custom Product



Highly Reliable Connectivity



Multiple means of Internet access are offered by the AR7091, including globally ubiquitous 5G, 4G LTE, Ethernet and Wi-Fi.

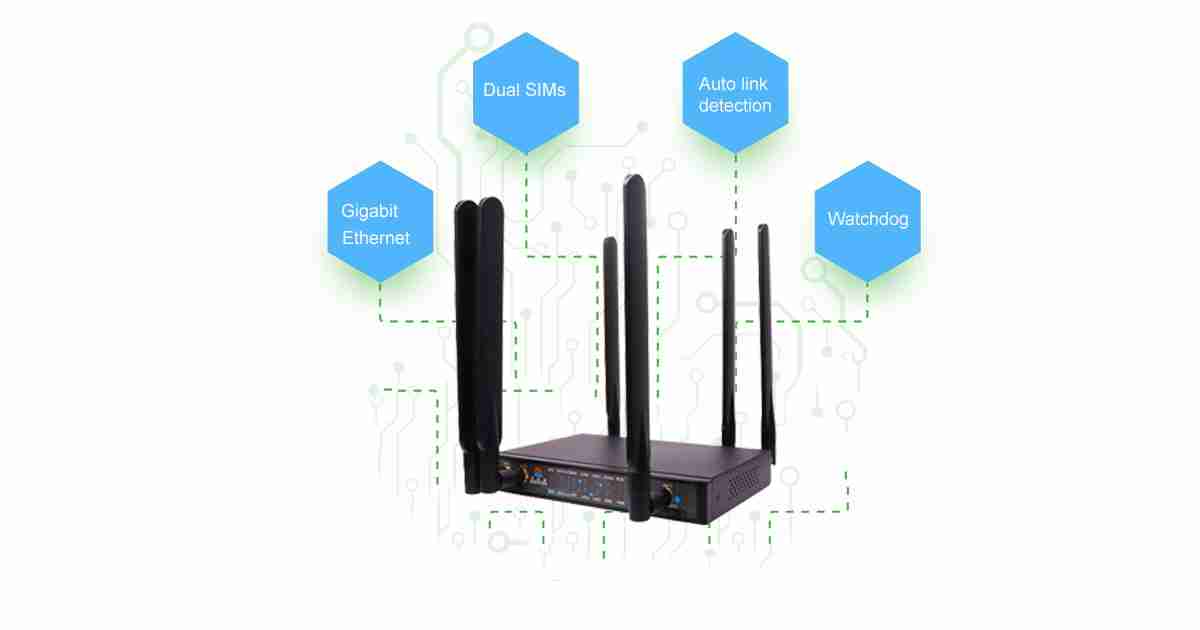

AR7091 Industrial Gateway



Python Custom Development Platform



AR7091 is embedded with support of the Python development platform, customers may custom develop applications to meet own application requirements.



AR7091 Industrial Gateway



Compatible with Multiple Industrial Protocols



AR7091 is compatible with a rich selection of mainstream industrial real-time Ethernet protocols and fieldbuses, including: therNet/IP (ControlLogix), EtherNet/IP (MicroLogix), Modbus TCP Master/ Slave, Modbus RTU Master/ Slave, OPC UA Client/ Server, IEC 104 Server etc.



AR7091 Industrial Gateway



Multiple industrial cloud solutions



The AR7091 Industrial edge gateway supports Microsoft AZURE, Amazon AWS and Schneider EcoStruxure cloud platforms, providing customers from various industries with more solutions.

AR7091 with multiple industrial cloud solutions



Complete Security Protection



AR7091 a complete security protection solution, including encryption technology to protect data transmission, firewalls to protect network security, and the user hierarchical authorization mechanism to ensure secure device access.

AR7091 industrial gateway



Industrial-grade Design



Wide range of robust routers for harsh and extreme environments. For harsh environments. Robust Industrial Data. Range to meet all demands. Networking made easy.



Fit into Any Harsh Environment

ItemsContents
Industrial DesignHigh-powered industrial cellular module
High-powered industrial 32bits CPU
Housing: iron, providing IP30 protection.
Power range: DC 9~35V
High ReliabilitySupport hardware and software WDT
Support auto recovery mechanism to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over voltage protection
Antenna port: lightning protection(optional)
Standard and ConvenienceSupport standard WAN port and PPPOE protocol that can connect to ADSL directly
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support several work modes
Support intellectual mode, enter into communication state automatically when powered
Convenient configuration and maintenance interface (WEB or CLI)
Supports Fixed ear and 35mm Din-rail mounting
High-performance and SecuritySupport multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G/5G.
Support double link backup between 2.5G/3G/4G/5G and WAN (optional).
Support VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version).
Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
Support local and remote firmware upgrade,import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support MAC address cloning.
WIFI support 802.11b/g/n. support AP, client. (optional)
WIFI support WEP,WPA,WPA2 encryption. (optional)
Support multiple online trigger ways, including SMS, ring and data.
Support link disconnection when timeout.
Support APN/VPDN.
Support VRRP link backup
Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
Support IoT protocol MQTT client and server (support CA)
Support industrial control OPCUA protocol and MODBUS protocol conversion
Support Python secondary development platform (Python3)
Support TCP/IP, UDP, FTP(optional), HTTP, etc.
Supports SPI firewall, VPN pass-through, access control, URL filtering,etc.
Support local log storage.
Support GPS (optional).
Support two SIM/UIM card(optional).
Support dual 4G/5G module (optional)
Hardware SystemCPUIndustrial 32 bits CPU
FLASH16MB (Extendable to 64MB)
SDRAM512MB
InterfaceSerial1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps

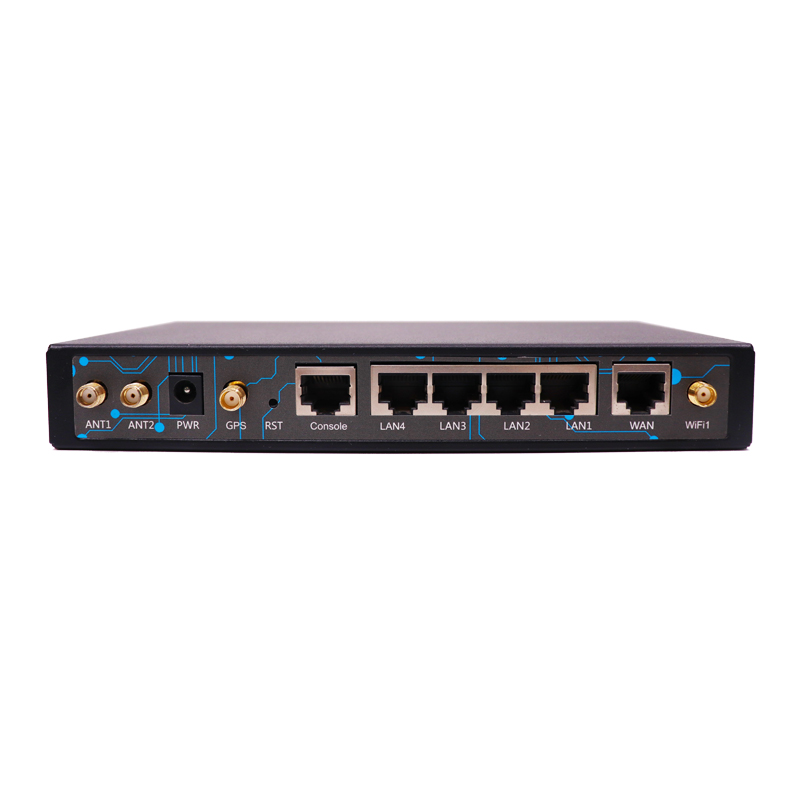

WAN1 Gigabit WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN4 Gigabit Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
AntennaCellular: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
GPS(optional):Standard SMA female interface, 50 ohm
SIM/UIMStandard 3V/1.8V user card interface, 15KV ESD protection
PowerStandard 3-PIN power jack, reverse-voltage and over voltage protection
ResetPress this key for 8 seconds to restore the router to its original factory default settings

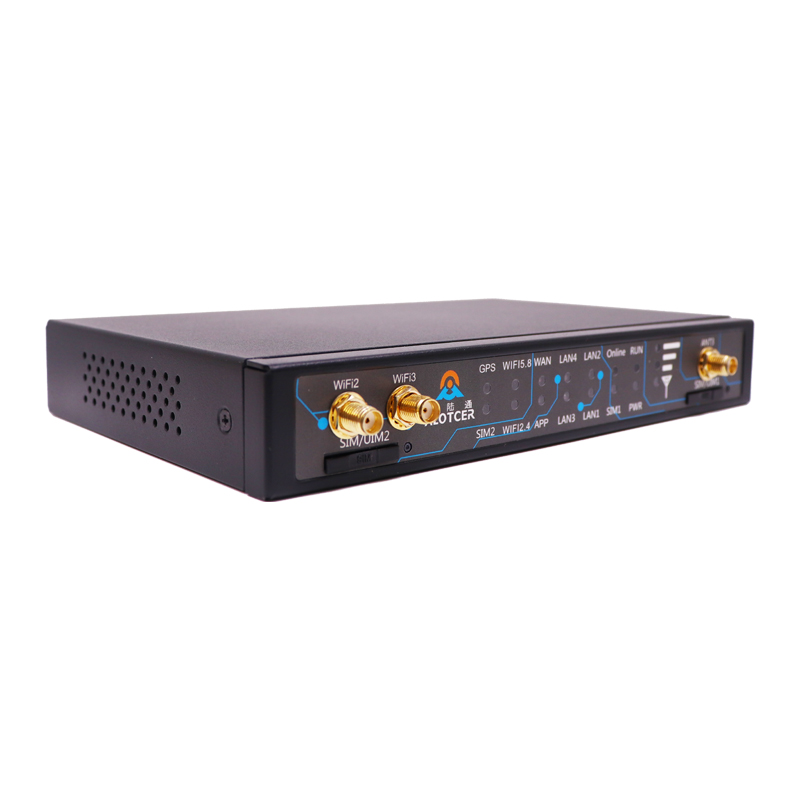

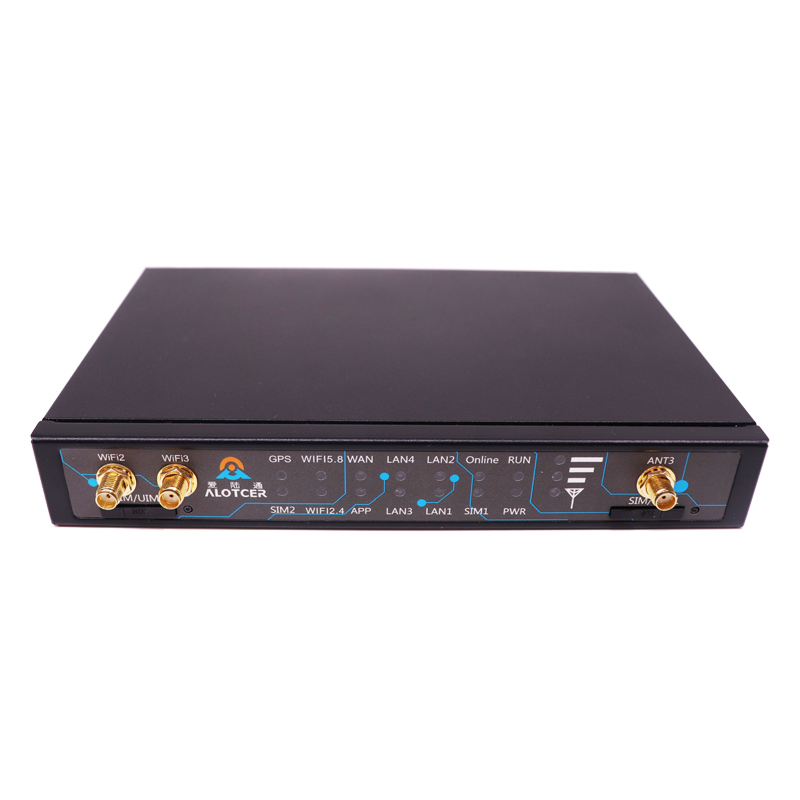

Indicator“Signal strength”、”PWR”、”RUN”、”SIM”、”Online”、”LAN1″、”LAN2″、”LAN3” 、”LAN4″、”WAN”、”APP”、”WIFI2.4″、”WIFI5.8″、”GPS”(optional)、”SIM2″(optional)
NetworkWireless Network5G NR SA/NSA:n1/2/3/5/7/8/12/20/28/41/66/71/ 77/78/79
TDD-LTE:B38/39/40/41
FDD-LTE:B1/2/3/4/5/7/8/13/17/20/25/28
WCDMA:850/900/1900/2100MHz
TD-SCDMA:1880-1920/2010-2025MHz(A/F)
CDMA2000 1x/ EVDO Rev. A:800/1900MHz
GSM/GPRS/EDGE:850/900/1800/1900MHz
CDMA:800/1900MHz
WANSupport PPP/PPPOE
LANSupport APR
Network AuthenticationSupport CHAP/PAP Authentication
Network AccessSupport APN/VPDN
IP ApplicationsSupport Ping、Trace、DHCPServer 、DHCP Relay、 DHCP Client、DNS relay、DDNS 、Telnet
IP RoutingSupport static routing
GPS (optional)Receiver Type50-channle
GPS L1(1575.42MHz) C/A code
SBAS: WAAS,EGNOS,MSAS,GAGAN
Max. update rate5 Hz
AccuracyPosition: 2.5m CPE
SBAS: 2.0m CPE
AcquisitionCold starts: 32S
Warm starts: 32S
Aided starts: <1S
Hot starts: <3S
SensitivityTracking: -160dBm
Reacquisition: -160dBm
Cold starts: -146dBm
Timing accuracyRMS: 30ns
99%: <60ns
Granularity: 21ns
Time pulseConfigurable, 0.25 to 1000Hz
WIFI (optional)StandardIEEE802.11b/g/n,2.4G support AP and Station mode
IEEE802.11ac,5.8G support AP and Station mode
BandwidthIEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 300Mbps (max)
IEEE802.11ac: 866Mbps (max)
SecurityWEP, WPA, WPA2, etc. WPS (optional)
Power supplyPower rangeDC 9~35V (12VDC recommended)
Consumption1390mA (@12VDC) (One Module) ①
Consumption2580mA @12VDC (Dual Module)
Max current<1200mA @12VDC(Dual Module 5G)
PhysicalDimensions186.8×120.2x28mm
Weight720g
Environmental LimitsOperating Temperature-35~+75ºC (-31~+167℉)
Storage Temperature-40~+85ºC (-40~+185℉)
Operating Humidity95% ( unfreezing)
