CE

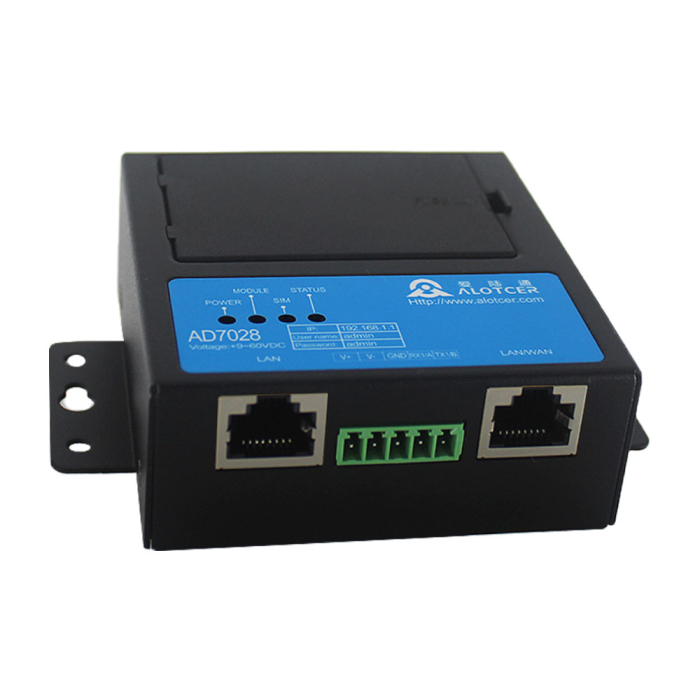

AD7028D(T/Z) Industrial Cellular Mobile Router 2 LAN 1 RS232

5G full network access, dual-mode SA/NSA, compatible with 4G/3G/2G.

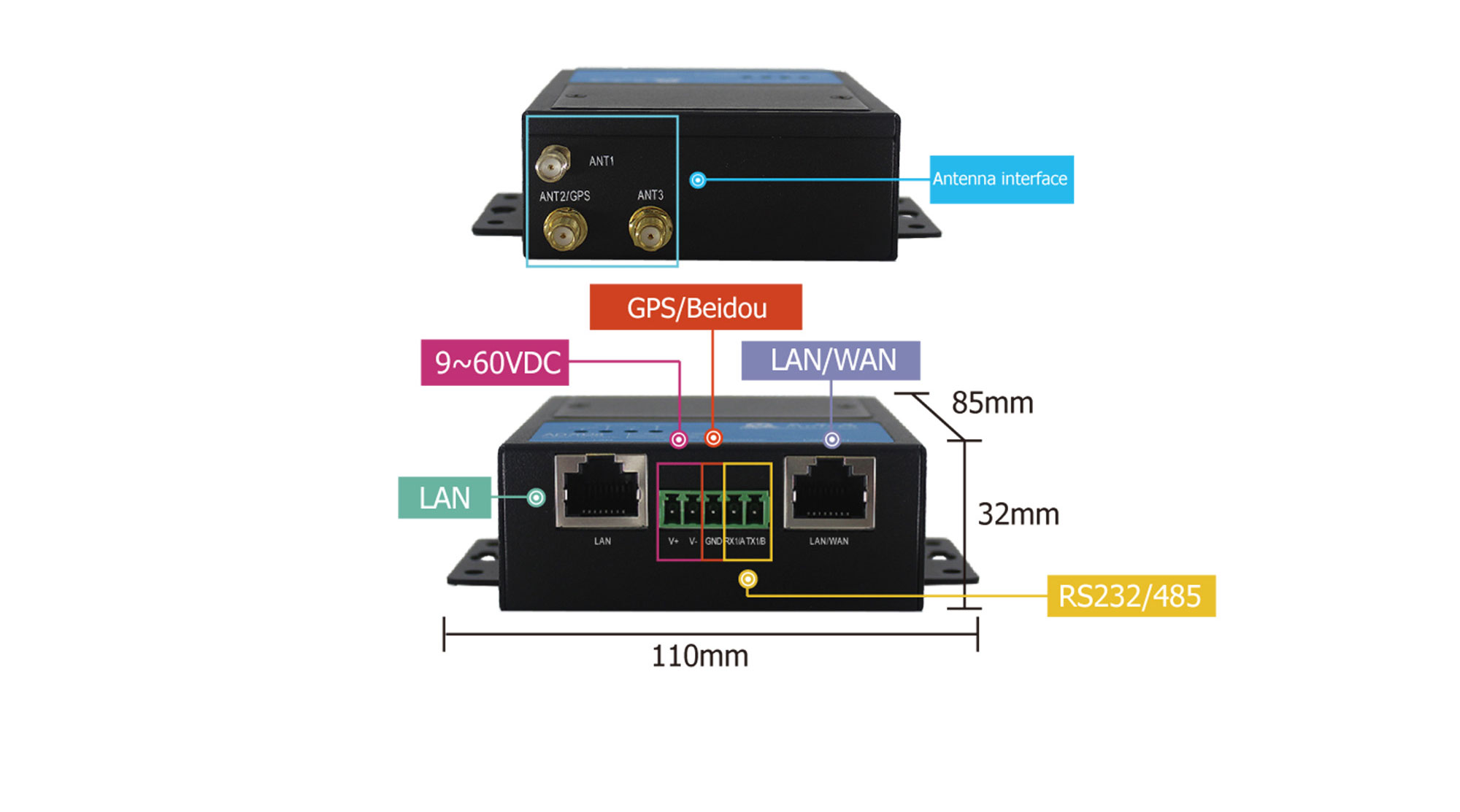

Two LAN ports (one can be used as WAN), one RS232/485 port.
Supports Electric power protocols 101/104 and Electric power terminal configuration interaction protocol.
Dual SIM Card (optional), GPS/Beidou, Electric power encryption/eSIM.
Features MQTT, Modbus TCP, OPC UA, Ntirp and DTU functions.
Supports IPSEC, L2TP, PPTP, openVPN GRE DMVPN etc.
Runs on Linux system and supports Python and C++ secondary development.
DC 9~60V input voltage range; communication current of 140mA when online and 120mA when offline (12V).

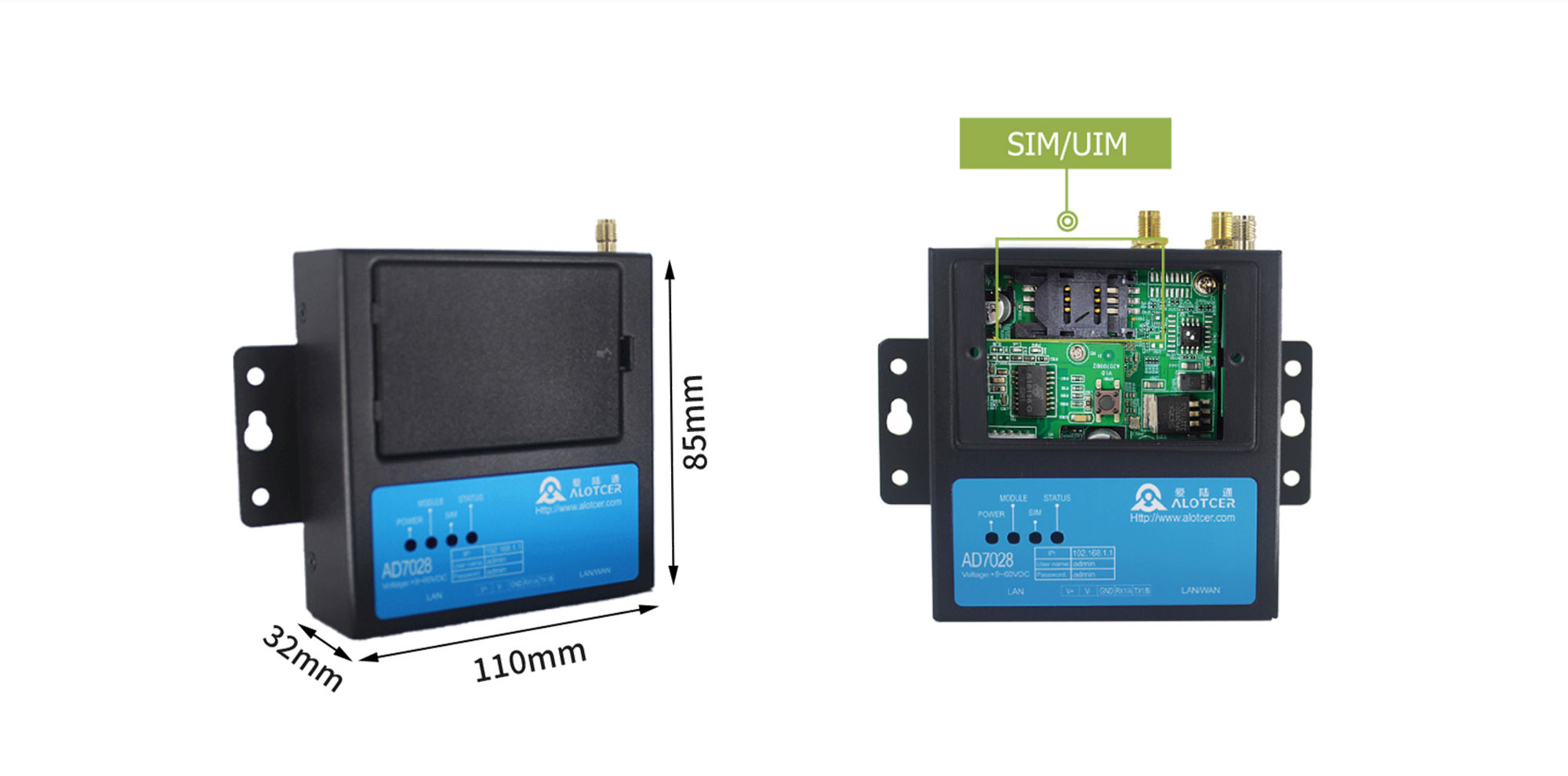

Operating temperature ranges from -40 to +75ºC; product size is 110x85x32mm.

AD7028D(T/Z) Industrial Cellular Mobile Router 2 LAN 1 RS232

The AD7028D(T)&AD7028D(Z) Industrial Cellular Mobile Router is an advanced cellular terminal device that has been developed to offer 5G/4G/3G/2G connectivity, a VPN client, and several other features. It is equipped with a powerful industrial 32-bit CPU and an embedded real-time operating system that ensures seamless performance. The device supports 1 RS232 (or 1 RS485), 1 10/100M LAN, and 1 10/100M LAN/WAN port, which enables transparent and convenient connection to a cellular network. Additionally, it supports a wide power range of 9-60V DC and has a compact and sturdy design that comes with necessary accessories for mount kit or DIN rail.

This Industrial Cellular Mobile Router has found extensive application in M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, among others.

Application scenarios: External network communication for Electric power DTU/box-type FTU | Smart Grid hardware encryption | Electric power differential protection for 5G Network Slicing.

AD7028D(T/Z) Industrial Cellular Mobile Router 2 LAN 1 RS232
