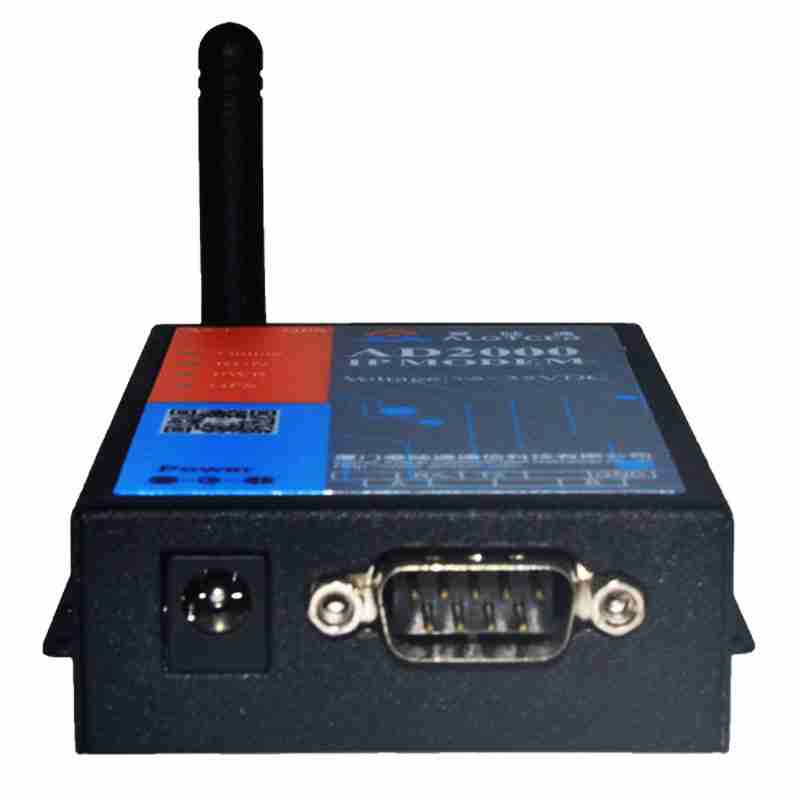

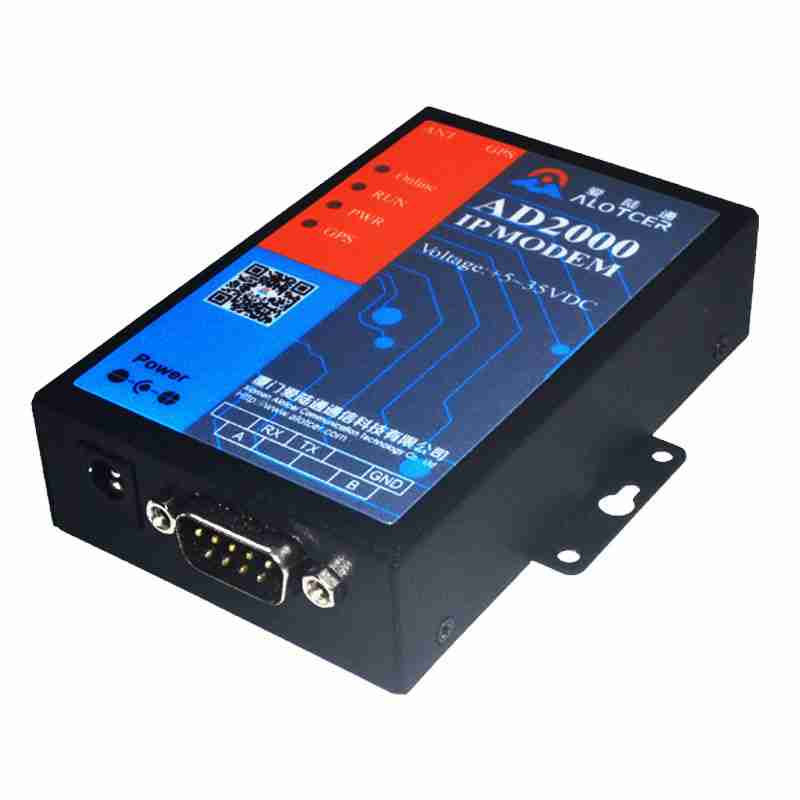

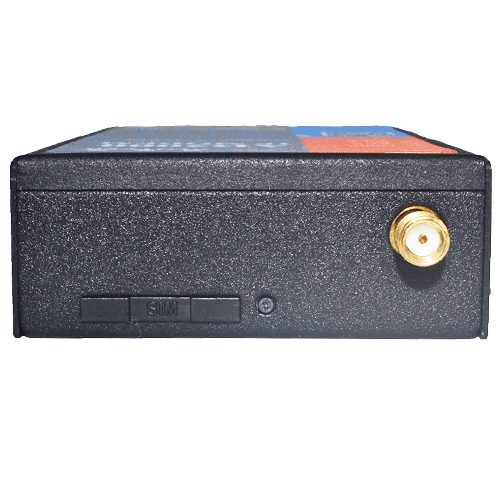

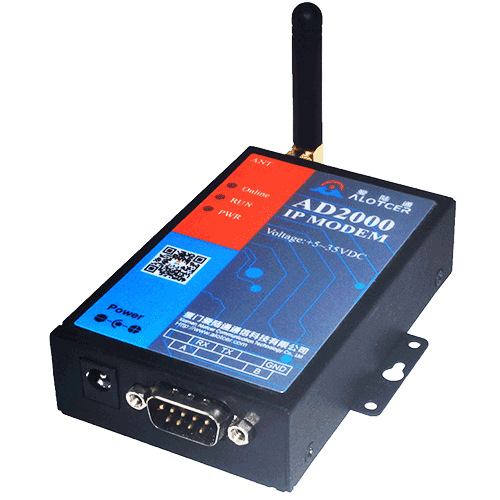

AD2000 DB9 Data Terminal Unit
Description
 |
Ultra-low power, Suitable for multi occasions. |
| High-performance low-power system, support multiple operating modes. Maximize the reduction of power consumption and improve power efficiency. |
|
 |
Kinds of application systems |
| Support standard TCP / UDP IP network protocol. Data transparent transmission. Compatible with various industry applications. | |
 |

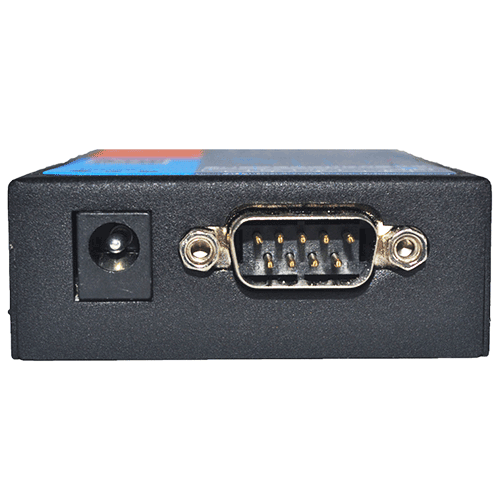

Standard communication interfaces in common use |
| Support standard DB9 RS232 / 485 / TTL communication interface, plug and play, no need to worry about any hardware compatibility Issues. | |
 |
SMS backup, ensure data security |
| In the case of network anomalies, the data will be transmitted by SMS to ensure the secure. | |
 |
Normal operating temperature -35℃~75℃ |
| The terminal can work properly at -35℃~75℃, suitable for the harsh environment applications. | |
 |
Power range DC 5~35V, stable and reliable |
| Work normally in the harsh power supply conditions. | |
 |
Industrial grade design, excellent quality |
| Electronic components, Core Modules, structural design, operating system, ect.. full compliance with industry-standard, and the products are more refined and more excellence. | |
 |
Customized services are available |
| We can provide flexible and efficient customized services. GPS, ZIGBEE and other functions can be supported. Overall solution is to our specialty |
| Items | Contents | |
|---|---|---|
| Industrial Design | High-powered industrial cellular module | |
| High-powered industrial 32bits CPU | ||
| Low power consumption design, support multi-sleep and trigger modes | ||
| Housing: iron, providing IP30 protection. | ||
| Power range: DC 5~35V | ||
| High Reliability | Support hardware and software WDT | |
| Support auto recovery mechanism, including online detect, auto redial when offline to make it always online | ||
| RS232/RS485/RS422 ports:15KV ESD protection | ||
| SIM/UIM port: 15KV ESD protection | ||
| Power port: reverse-voltage and over voltage protection | ||
| Antenna port: lightning protection(optional) | ||
| Standard and Convenience | Support standard RS232/RS485 ports that can connect to serial devices directly | |
| Support intellectual mode, enter into communication state automatically when powered | ||
| Provide SMS tool software | ||
| Support standard AT command | ||
| High-performance and Security | Support TCP server | |
| Support double data centers, one main and another backup | ||
| Support multi data centers and it can support 5 data centers at the same time | ||
| Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout | ||
| Support dynamic domain name(DDNS) and IP access to data center | ||
| Design with standard TCP/IP protocol stack | ||
| Support APN/VPDN | ||
| Hardware System | CPU | Industrial 32 bits CPU |
| FLASH | 1MB (Extendable to 8MB) | |
| SDRAM | 256KB(Extendable to 1MB) | |
| Interface | Serial | 1 RS232 port and 1 RS485(or RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps |
| Antenna | Cellular: Standard SMA female interface, 50 ohm GPS(optional):Standard SMA female interface, 50 ohm |
|
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | |
| Power | Standard 3-PIN power jack, reverse-voltage and over voltage protection | |
| Indicator | “PWR”、”RUN”、”Online”、”GPS”(optional) | |
| Network | Wireless Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE: Band 38/39/40/41 FDD-LTE: Band 1/3/5 |
| PPP Protocol | Support PPP Protocol | |
| PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. | |
| Network Authentication | Support CHAP/PAP Authentication | |
| TCP Heartbeat | Monitor the server connection | |
| GPS (optional)） |
Receiver Type | 50-channle GPS L1（1575.42MHz）C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN |
| Max. update rate | 5 Hz | |
| Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE |
|
| Acquisition | Cold starts: 32S Warm starts: 32S Aided starts: <1S Hot starts: <3S |
|
| Sensitivity | Tracking: -160dBm Reacquisition: -160dBm Cold starts: -146dBm |
|
| Timing accuracy | RMS: 30ns 99%: <60ns Granularity: 21ns |
|
| Time pulse | Configurable, 0.25 to 1000Hz | |
| Power supply | Standard Power | DC 12V/1.5A |
| Power range | DC 5~35V | |
| Communication Current | <100mA (@12VDC) | |
| Standby Current | <20mA（@12VDC） | |
| Sleep current | <10mA（@12VDC） | |
| Physical | Dimensions | 91x59x23mm |
| Weight | 175g | |
| Environmental Limits | Operating Temperature | -35~+75ºC (-31~+167℉) |
| Storage Temperature | -40~+85ºC (-40~+185℉) | |
| Operating Humidity | 95% ( unfreezing) | |
