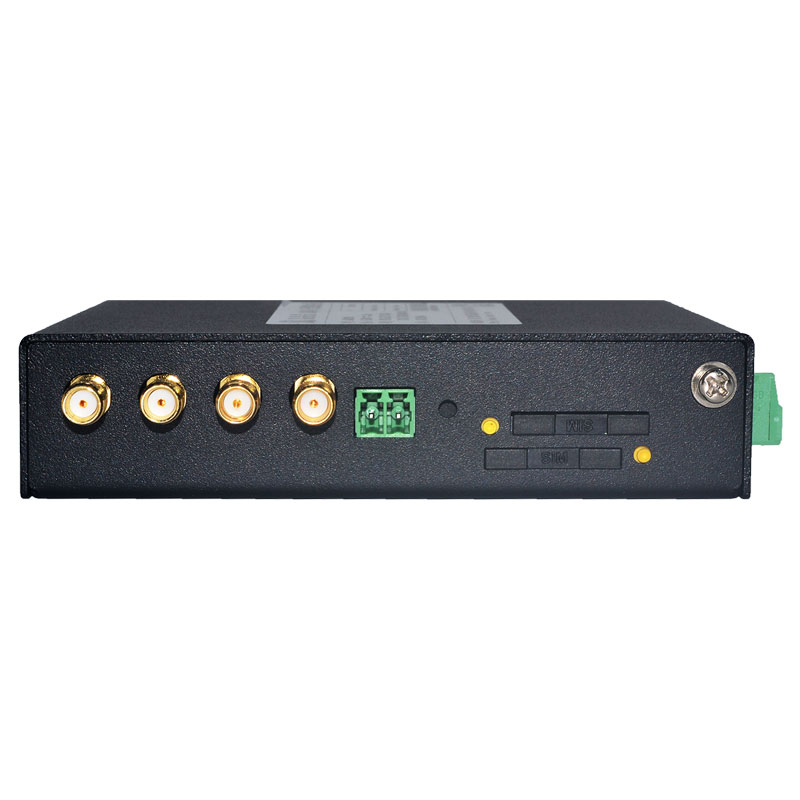

AR7088H Industrial Router 3 LAN Dual SIM Card

🔸5G 🔸4G 🔸DIN Rail 🔸Dual SIM Card 🔸VPN Channel

👉 3 LAN Ports, Dual Serial Ports, Dual Cards
👉 5G/4G Network, Trend Leading, National Invention Patent
👉 Support DIN Rail and Mount Kit Installation
👉 Support Amazon/Google/Microsoft Azure Cloud Services
👉 State Grid network encryption, GPS, Lora, BDS and other hardware and software customization and services

Get Sample Now!
Custom Product



Support DIN rail and mount kit installation



3 lan ports, dual serial ports, dual cards, support DIN rail and mount kit installation



AR7088H Industrial Router 3 LAN Dual SIM Cart



Rich Interfaces



2 RS232 ports, 3 Ethernet LAN ports, dual card



AR7088H Industrial Router 3 LAN Dual SIM Cart



Fast Speed 4G/5G Network



5G/4G network to meet big data communication transmission



Fast Speed 4G/5G Network



OEM

State Grid network encryption, GPS, Lora, BDS and other hardware and software customization and services

State Grid network hardware encryption



Remote Management



Efficient remote device management, easy to install and user-friendly interface

Router Remote Management



Fit into Any Harsh Environment



5~60V DC wide power, Operating Temperature from -40 to 80 °C, cold resistance, high-temperature resistance, anti-interference



Fit into Any Harsh Environment



Quick Network Backup



User configuration information anti-lost mechanism, running more stable



Quick Network Backup



Data Security, Multiple VPN



AD7028 Router supports mainstream VPN protocols, including
PPTP, L2TP, IPSec, OpenVPN, and GRE. Multiple safe encryption methods make data safe transmission up to financial grade.



Data Security, Multiple VPN

ItemsContents
Industrial DesignHigh-powered industrial cellular module
High-powered industrial 32bits CPU
Housing: iron, providing IP30 protection.
Power range: DC 5~35V
High ReliabilitySupport hardware and software WDT
Support auto recovery mechanism to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over voltage protection
Antenna port: lightning protection(optional)
Standard and ConvenienceSupport standard WAN port and PPPOE protocol that can connect to ADSL directly
Support standard RS232 and RS485, Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support several work modes
Support intellectual mode, enter into communication state automatically when powered
Convenient configuration and maintenance interface (WEB or CLI)
Supports Fixed ear and 35mm Din-rail mounting
High-performance and SecuritySupport multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G/5G.
Support double link backup between 2.5G/3G/4G/5G and WAN (optional).
Support VPN client(PPTP, L2TP, IPSEC and GRE).
Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
Support local and remote firmware upgrade,import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support MAC address cloning.
WIFI support 802.11b/g/n. support AP, client. (optional)
WIFI support WEP,WPA,WPA2 encryption. (optional)
Support multiple online trigger ways, including SMS, ring and data.
Support link disconnection when timeout.
Support APN/VPDN.
Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
Support TCP/IP, UDP, FTP(optional), HTTP, etc.
Supports SPI firewall, VPN pass-through, access control, URL filtering,etc.
Support local log storage.
Support GPS/Beidou (optional).
Support Dual SIM(optional).
Hardware SystemCPUIndustrial 32 bits CPU
FLASH16MB (Extendable to 64MB)
SDRAM128MB
InterfaceSerial1 RS232 and 1 RS485, 15KV ESD protection
Serial port: 5 PIN industrial terminal, 3.5mm pitch
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Large serial port data cache:10MB
WAN/LAN1 10/100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN2 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
AntennaCellular/GPS: Standard SMA female interface, 50 ohm
WIFI: Standard SMA male interface, 50 ohm
SIM/UIMStandard 3V/1.8V user card interface, 15KV ESD protection
Power2 PIN industrial t erminal, 3.81mm pitch, reverse- voltage and over voltage protection
ResetPress this key for 8 seconds to restore the router to its original factory default settings
Indicator“PWR”、”SIG”、”NET”、”APP” 、”Link”(RJ45)
NetworkWireless NetworkGSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE: Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE: Band 1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66
PPP ProtocolSupport PPP Protocol
PPP HeartbeatMaintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link.
Network AuthenticationSupport CHAP/PAP Authentication
TCP HeartbeatMonitor the server connection
WIFI (optional)StandardIEEE802.11b/g/n
BandwidthIEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
SecurityWEP, WPA, WPA2, etc. WPS (optional)
Power supplyPower rangeDC 5~35V, Recommended 12VDC/1.5A
Communication Current<500mA (@12VDC)
Standby Current<250mA(@12VDC)
PhysicalDimensions107x98x24mm
Weight350g
InstallationMount Kit or DIN Rail 35mm (optional)
Environmental LimitsOperating Temperature-35~+75ºC (-31~+167℉)
Storage Temperature-40~+85ºC (-40~+185℉)
Operating Humidity95% ( unfreezing)
