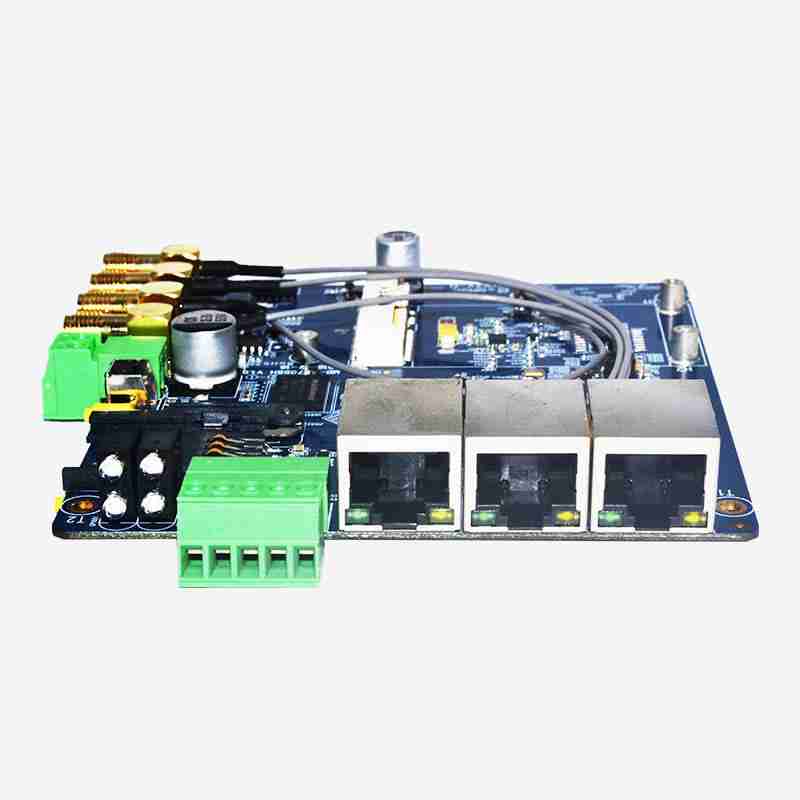

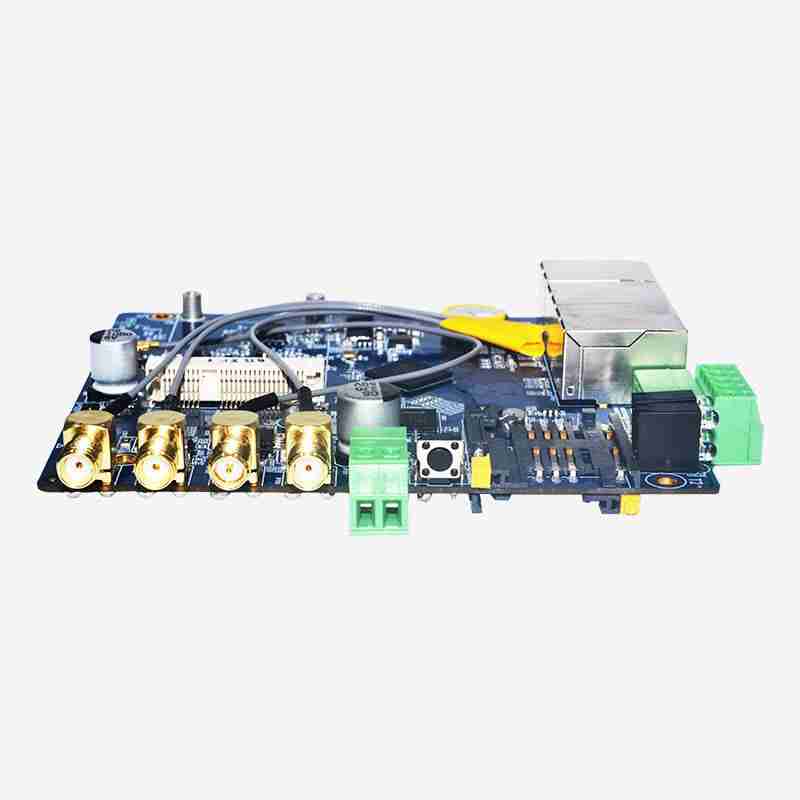

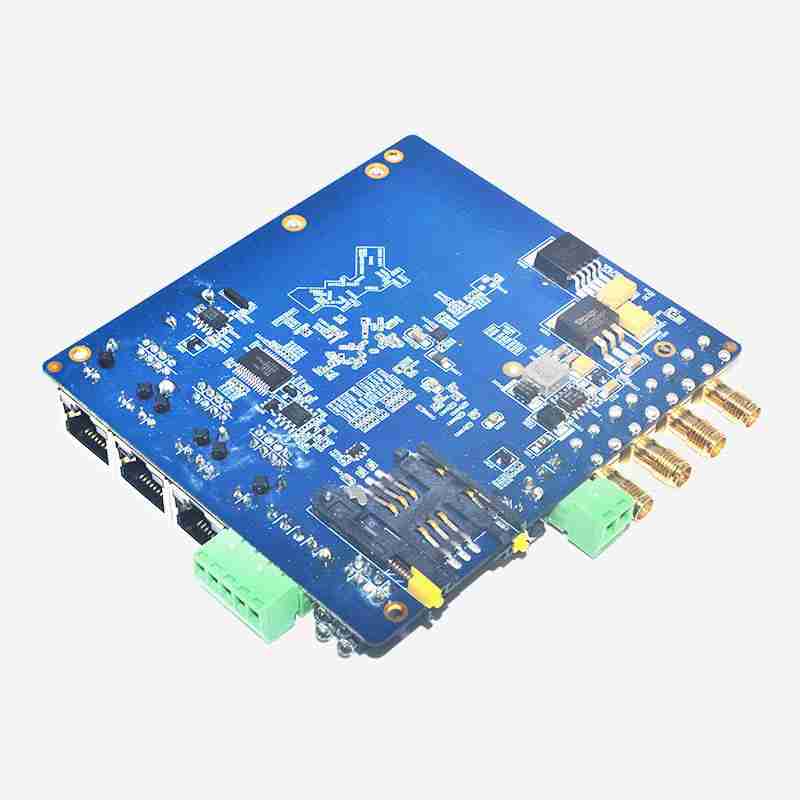

AR7088H Embedded Edge Router 3 LAN

🔸5G/4G Industrial router for digital signage
🔸Industrial router for IP Camera
🔸Industrial router for vending

👉 Support Worldwide 5G/4G 7 Mode Full Band
👉 Secure VPN: IPsec/PPTP/L2TP/GRE/OpenVPN
👉 Failover between wire and SIM card, make transmission safer
👉 User Configuration Information Anti-lost Mechanism
👉 Efficient Remote Device Management



Alotcer AR7088 industrial router for digital signage, vending and IP Camera



AR7088 industrial routers are designed for industrial IoT and M2M applications like digital signage, kiosk, ATM, smart grid, IP camera, HVAC, air compressor, industry 4.0



AR7088 2 LAN Industrial Router with Sim Card Slot



Rich Interfaces



2 RS232/RS485 ports, 2 Ethernet LAN ports



AR7088 2 LAN Industrial Router with Sim Card Slot



Fast Speed 4G/5G Network



Speed Upgrades; Low Latency; Massive Capacity; Increased Bandwidth;



Fast Speed 4G/5G Network



24 hours online, ensure smooth communication



Muitiple watchdog anti-crash mechanism for CPU, system, application, etc.

24 hours online



Remote Management



Efficient remote device management, easy to install, and user-friendly interface

Router Remote Management



Fit into Any Harsh Environment



5~60V DC wide power, Operating Temperature from -40 to 80 °C, cold resistance, high-temperature resistance, anti-interference



Fit into Any Harsh Environment



Quick Network Backup



User configuration information anti-lost mechanism, running more stable



Quick Network Backup



Data Security, Multiple VPN



AR7088 Router supports mainstream VPN protocols, including
PPTP, L2TP, IPSec, OpenVPN, and GRE. Multiple safe encryption methods make data safe transmission up to financial grade.



Data Security, Multiple VPN

Items Contents
Industrial Design High-powered industrial cellular module
High-powered industrial 32bits CPU
Housing: iron, providing IP30 protection.
Power range: DC 5~60V
High Reliability Support hardware and software WDT
Support auto recovery mechanism to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485 ports:15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and over voltage protection
large serial port data cache(10MB) ,ensure the data is not lost
Antenna port: lightning protection(optional)
Standard and Convenience Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support standard RS232(or RS485), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support several work modes
Support intellectual mode, enter into communication state automatically when powered
Convenient configuration and maintenance interface (WEB or CLI)
High-performance and Security Support multiple WAN access methods, including static IP, DHCP, PPPOE, 2.5G/3G/4G.
Support double link backup between 2.5G/3G/4G and WAN (optional).
Support VPN client(PPTP, L2TP, IPSEC and GRE)(only for VPN version).
Support remote management, SYSLOG, SNMP, TELNET, SSH, HTTPS, etc.
Support local and remote firmware upgrade,import and export configure file.
Support NTP, RTC embedded.
Support multiple DDNS provider service.
Support MAC address cloning.
Support multiple online trigger ways, including SMS, ring and data.
Support APN/VPDN.
Support multiple DHCP server and DHCP client, DHCP binding MAC address, DDNS, Firewall, NAT, DMZ host, QoS, traffic statistics, real-time display data transfer rate etc.
Support TCP/IP, UDP, FTP(optional), HTTP, etc.
Supports SPI firewall, VPN pass-through, access control, URL filtering,etc.
Support local log storage.
Support link disconnection when timeout.
Hardware System CPU Industrial 32 bits CPU
FLASH 16MB (Extendable to 64MB)
SDRAM 128MB
Interface Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
WAN 1 10/100Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 1 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Antenna Standard SMA female interface, 50 ohm
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and over voltage protection
Reset Press this key for 8 seconds to restore the router to its original factory default settings
Indicator “Signal strength”、”PWR”、”RUN”、”SIM”、”Online”、”LAN”、”WAN”
Network Wireless Network GSM/GPRS/EDGE: 850/900/1800/1900MHz
CDMA: 800/1900MHz
WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz
CDMA2000 1x/ EVDO Rev. A: 800/1900MHz
TD-SCDMA: 1880-1920/2010-2025MHz(A/F)
TDD-LTE: Band 38/39/40/41& Band 61/62 (Private Network)
FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25
WAN Support PPP/PPPOE
LAN Support APR
Network Authentication Support CHAP/PAP Authentication
Network Access Support APN/VPDN
IP Applications Support Ping,Trace, DHCPServer, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet
IP Routing Support static routing
Power supply Standard Power DC 12V/1.5A
Power range DC 5~35V
Consumption <400mA (@12VDC)
Physical Dimensions 108.43x85x40.7mm
Weight 126g
Environmental Limits Operating Temperature -35~+75ºC (-31~+167℉)
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)
