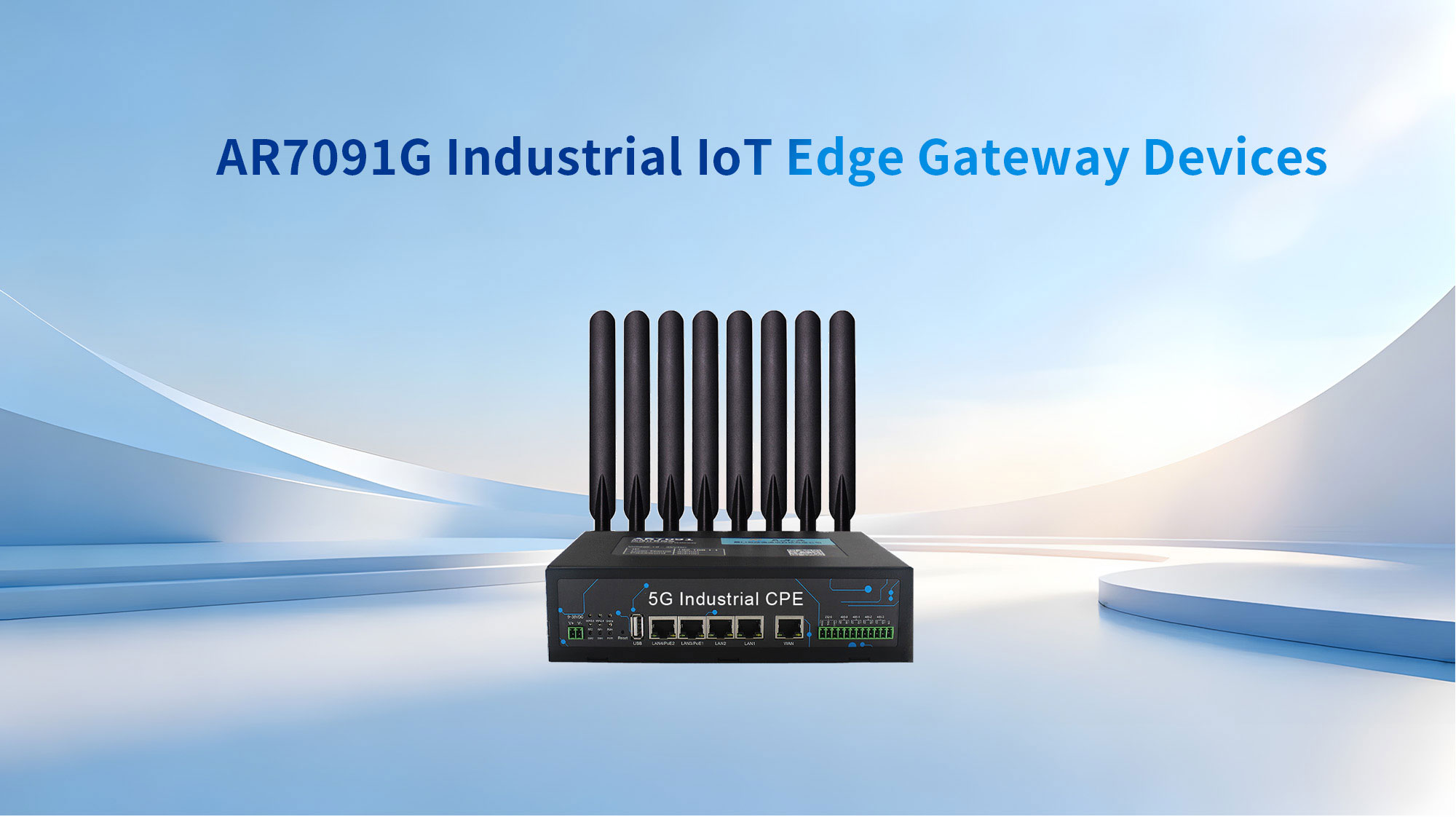

AR7091G Industrial IoT Edge Gateway Devices

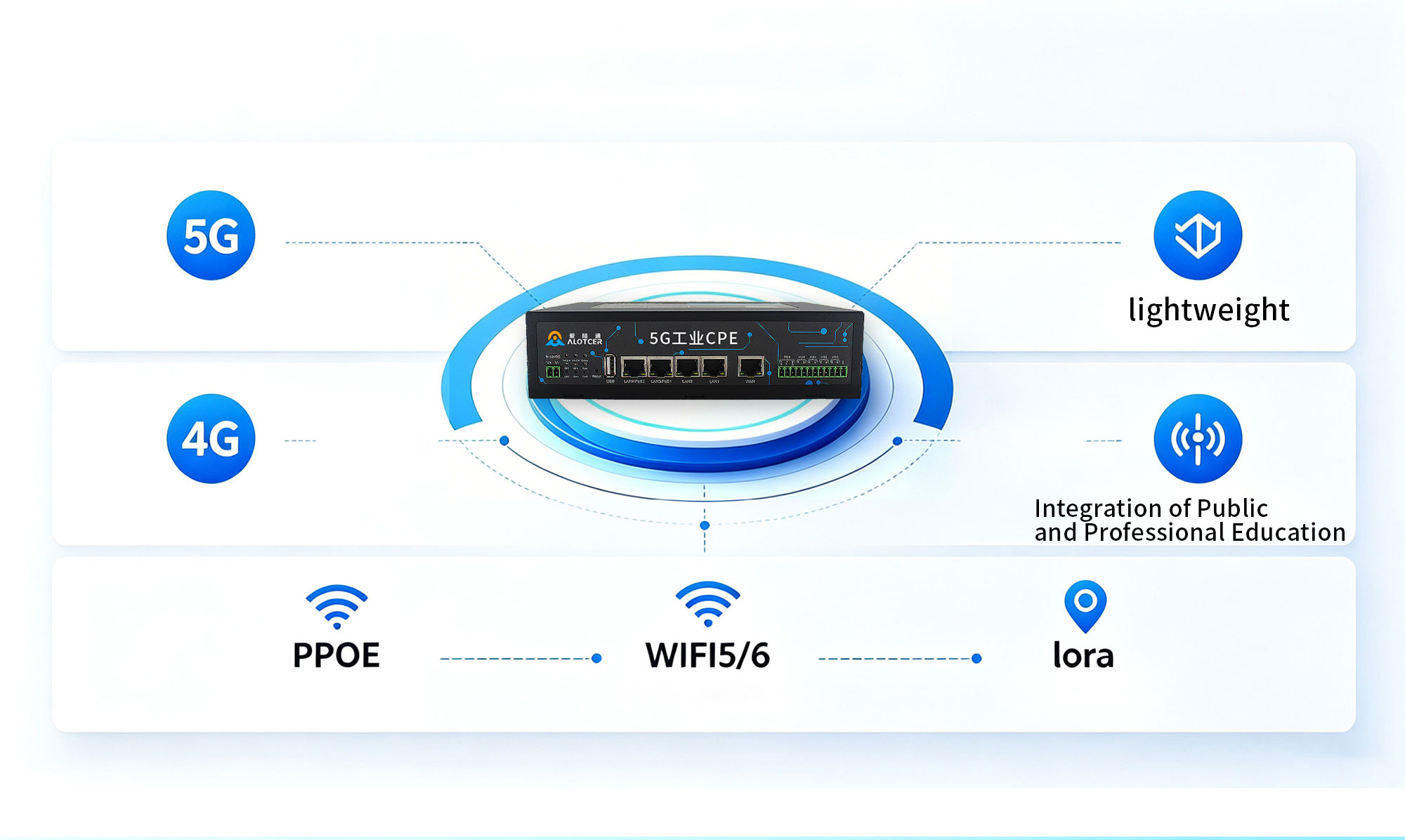

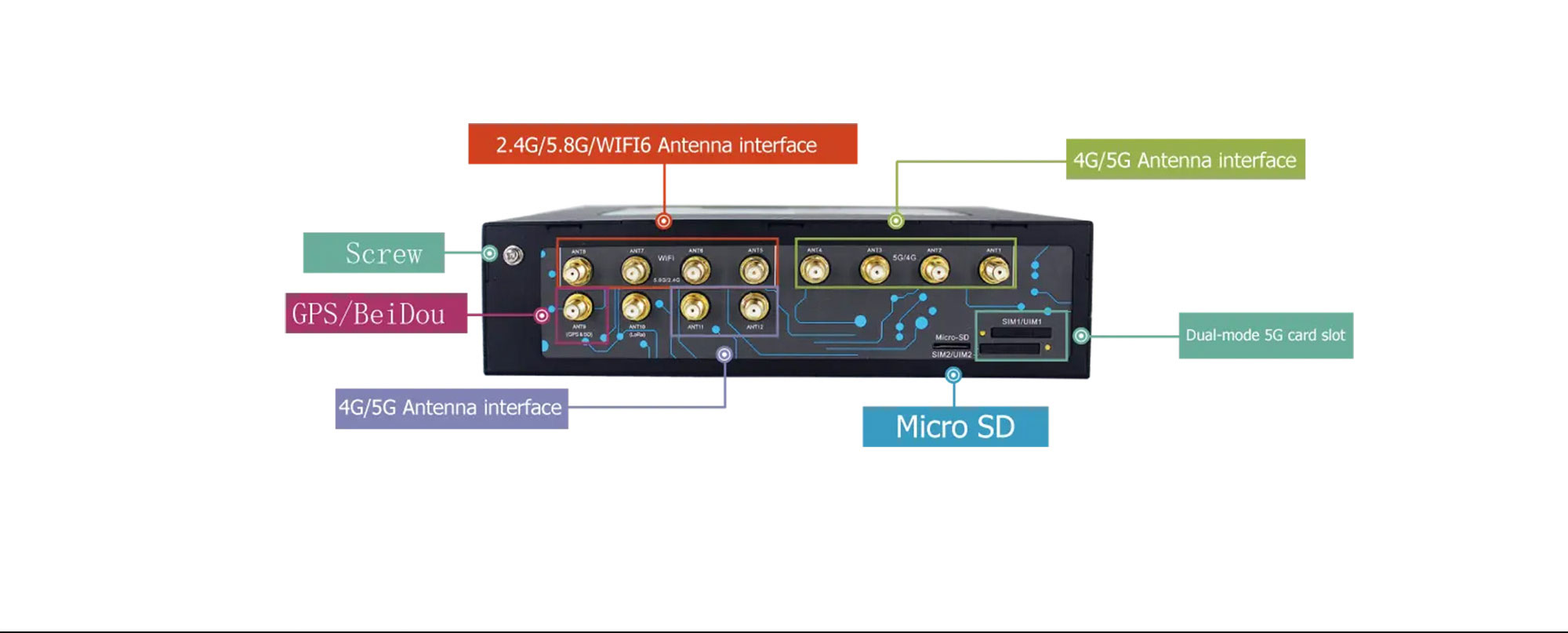

Dual-mode 5G
  Dual 5G module, dual SIM card, 1 Gigabit WAN port/optical port, and 4 Gigabit LAN ports.

Multiple interfaces

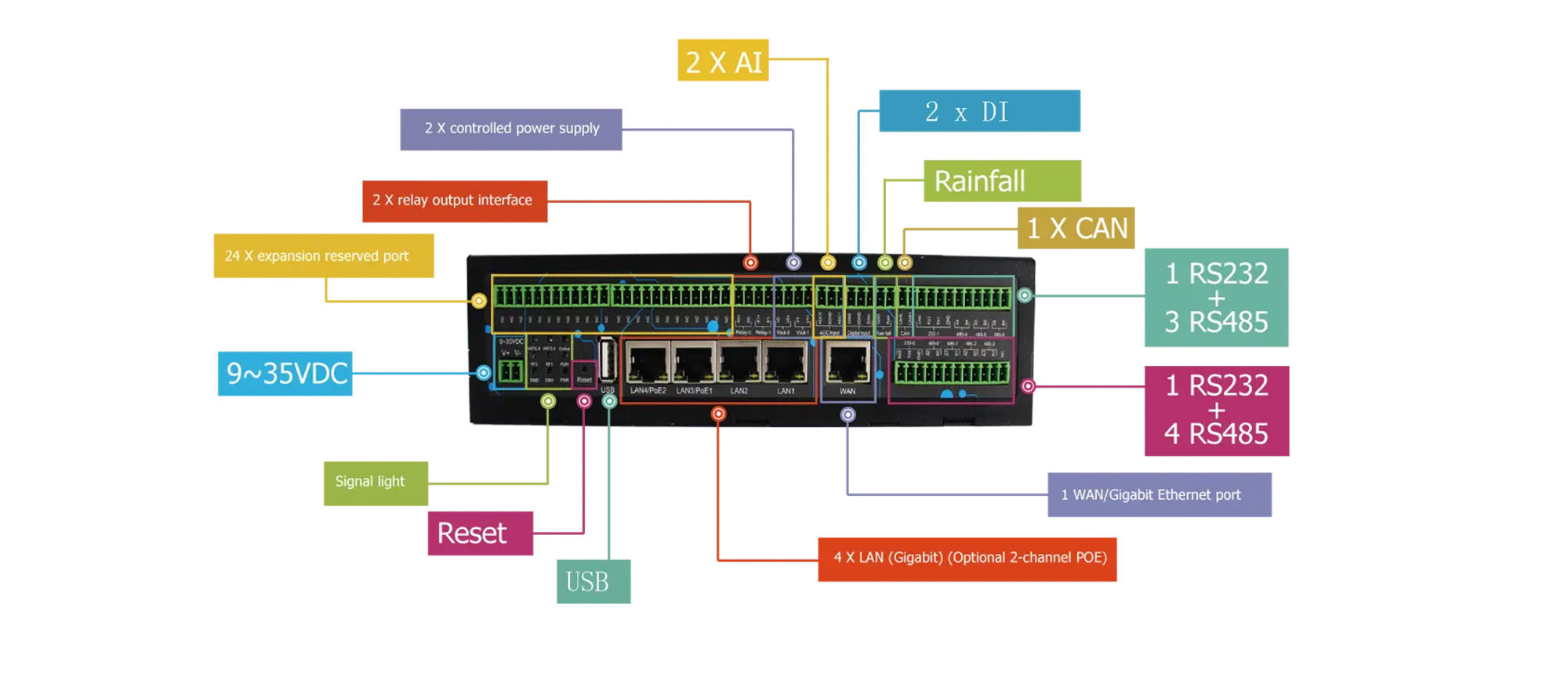

  1 rainfall interface, 2 AI interfaces, 2 DI interfaces, 1 CAN interface, and 2 relay-controlled power supply interfaces.

Dual standby SIM cards
  2 RS232 interfaces, 7 RS485 interfaces, dual-band high-speed WIFI of 2.4/5Ghz frequency band, optional WIFI6.

Rich optional accessories
  Optional GPS/Beidou/pulse signal input/output, base station/B code timing synchronization function, power encryption/public professional/eSIM.

Expandable I/O board
  Special features: modular software and hardware architecture, supports custom I/O interface board customization.

Hydrological regulations in various provinces
  Complies with hydrological resources and environmental protection regulations such as those for the different provinces in China, MQTT protocol authentication, etc.

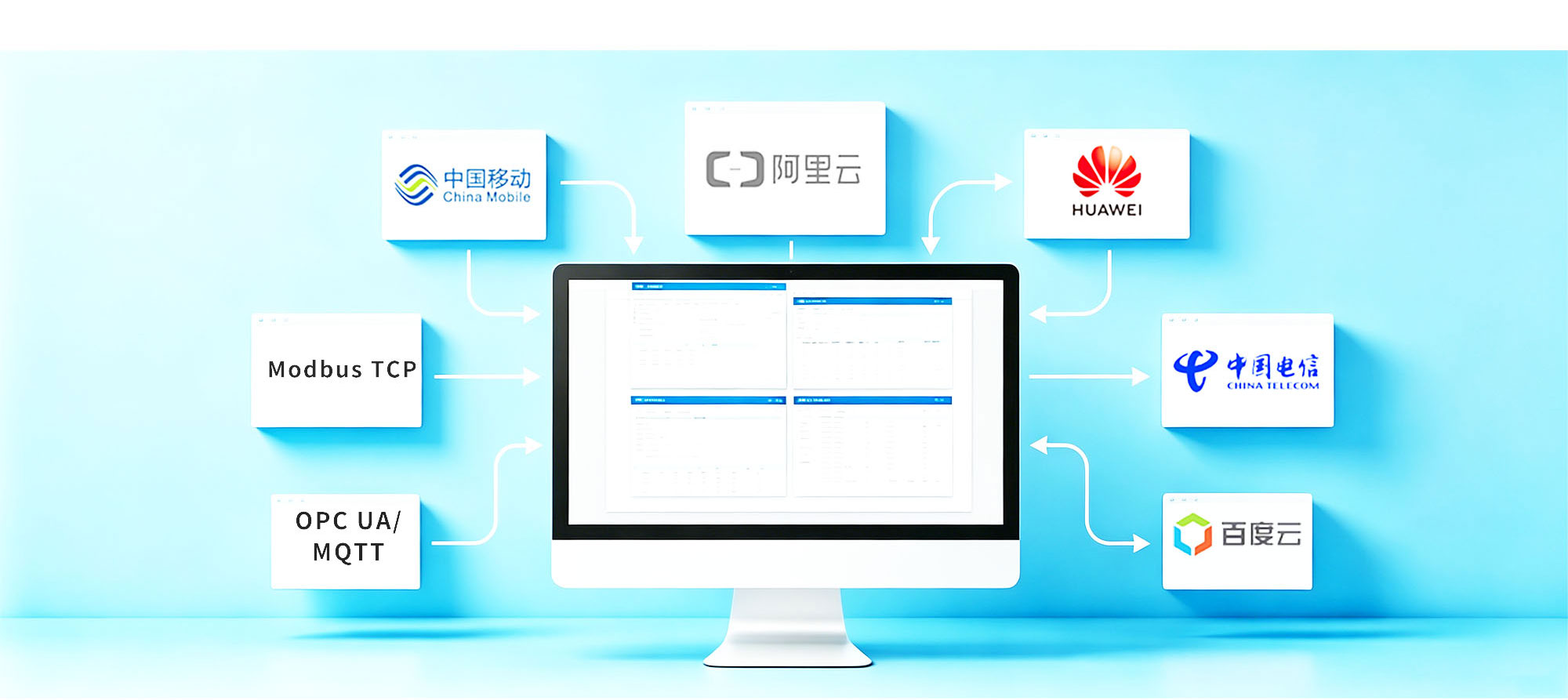

  Modbus RTU、Modbus TCP、OPC UA、Ntirp、DTU functions are supported.

VPN networking

Secondary development
  High-performance dual-core CPU, Linux system, supports Python, and C++ secondary development.

Hardware encryption
  Supports mainstream PLC protocols, and optional protocols like IEC101/104, DNP3.0/DLT645, etc.

Wide voltage range current consumption
  DC9~35V, input power consumption is less than or equal to 5.9 /5.7W without communication, and less than or equal to 6.5 /7.2W with communication (4G/5G).

High-temperature resistance

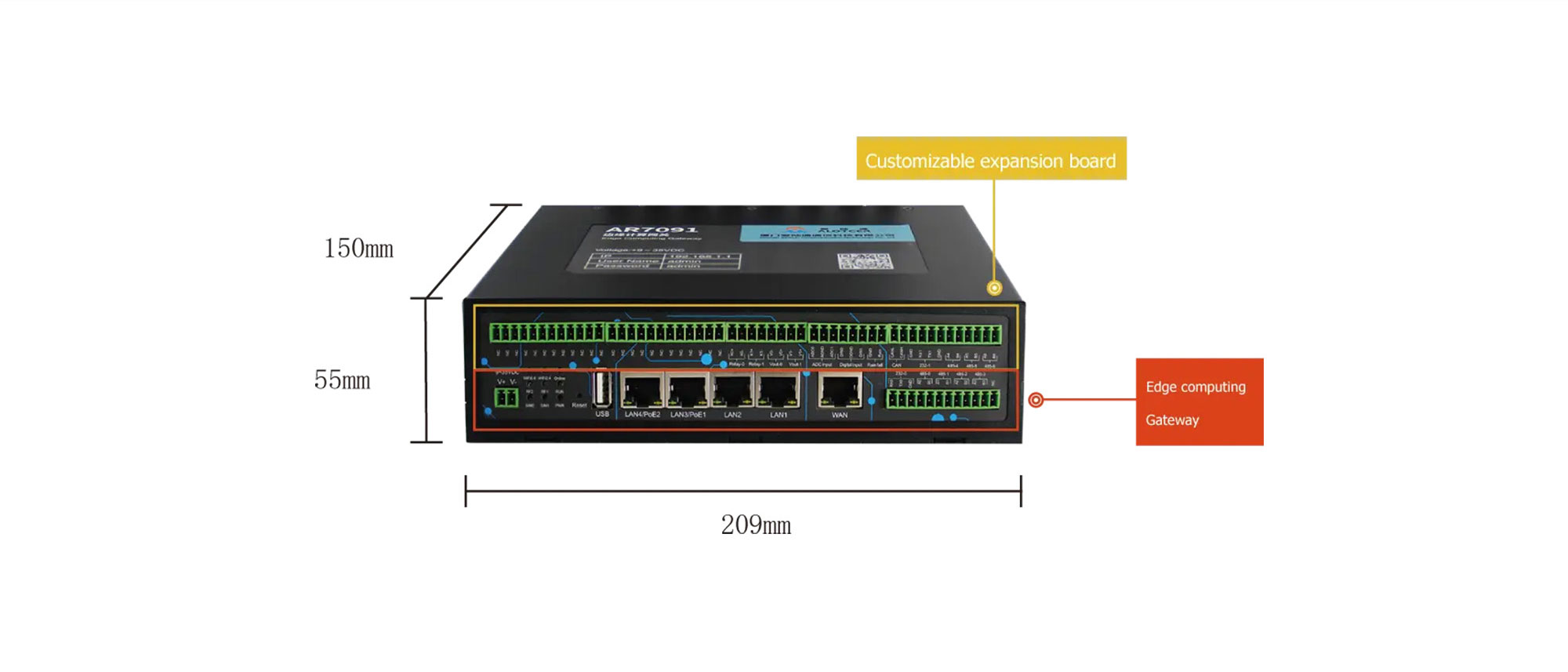

  Working temperature -40 ~ +75ºC, the product size is 209x150x55 mm.
